Carina

Carina.jl is a finite element framework for coupling and multiphysics simulations, primarily in solid mechanics and heat conduction. As the spiritual successor to Norma.jl, Carina introduces GPU acceleration via KernelAbstractions.jl, targeting CPUs, NVIDIA GPUs, and AMD GPUs from a single code base.

Simulations

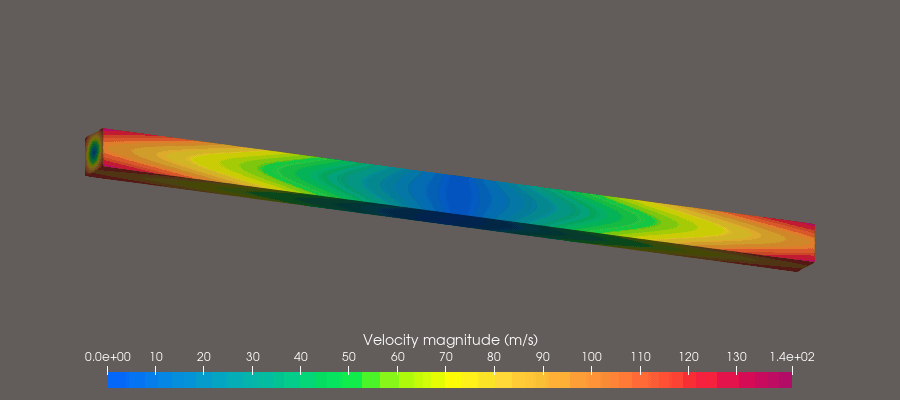

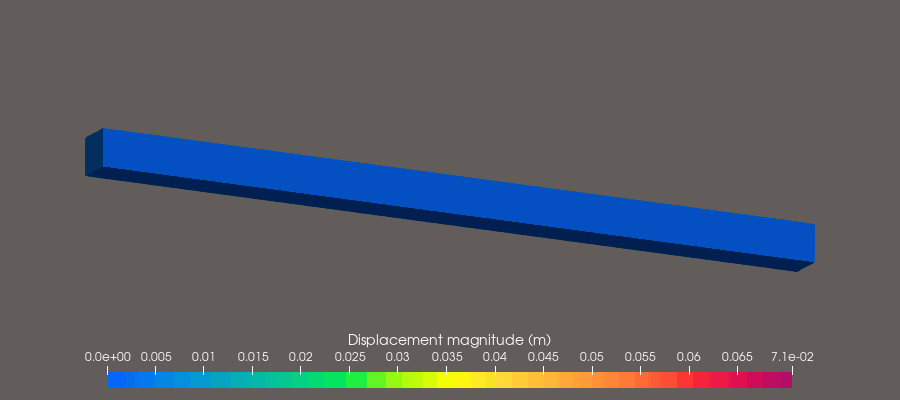

Torsion wave — explicit central difference on AMD GPU

A free 1 m × 50 mm × 50 mm neo-Hookean elastic bar is given an initial angular velocity field that launches torsion waves from every cross-section simultaneously. The waves superimpose, and the bar cycles through two complete twist-and-return sequences before the animation loops.

Displacement magnitudeVelocity magnitude
Displacement magnitudeVelocity magnitude

Neo-Hookean solid (E = 1 GPa, ν = 0.25, ρ = 1000 kg/m³). 160,000 hexahedral elements (~177,000 nodes). Explicit central difference, Δt = 500 ns, ~14,000 steps, 5.95 ms simulated. Wall time: 227 s on an AMD Radeon RX 7600 (ROCm). Left: displacement magnitude [0, 71 mm]. Right: velocity magnitude [0, 141 m/s]. Rainbow Uniform colormap; geometry warped by actual displacements.

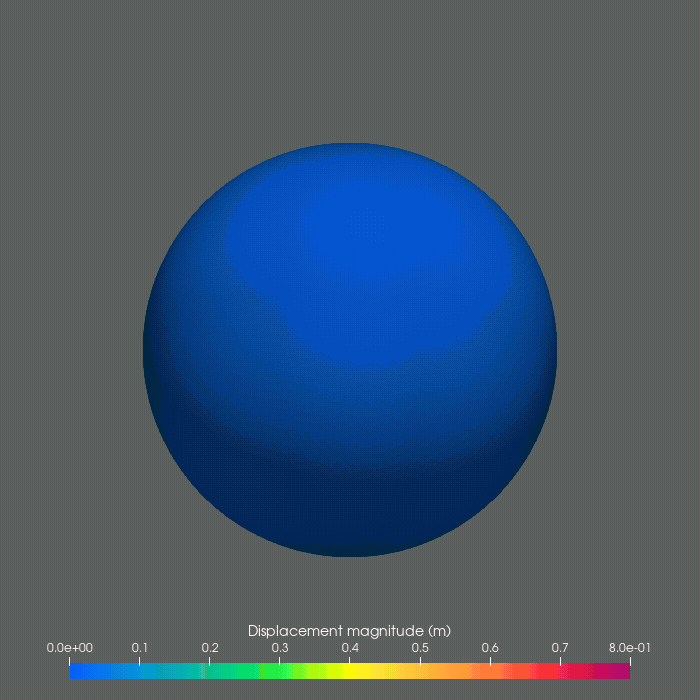

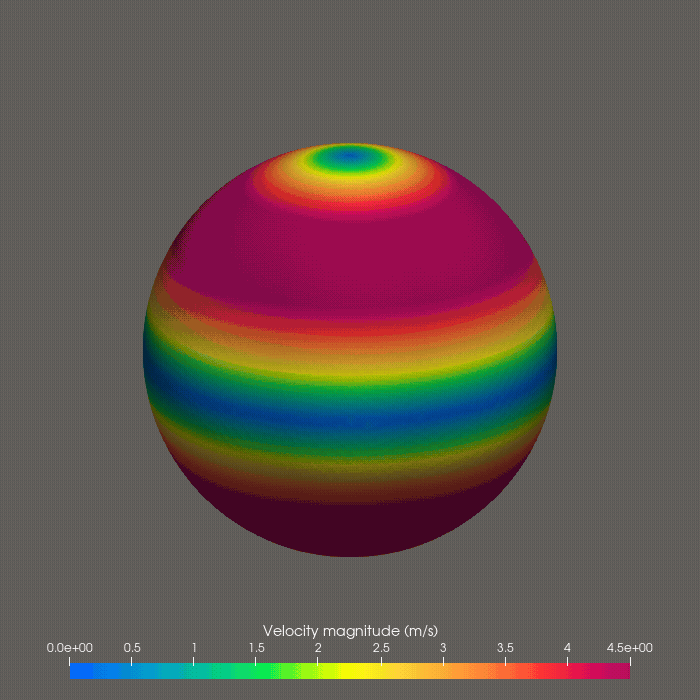

Sphere torsion — implicit Newmark on CPU

A free unit neo-Hookean sphere is given an initial angular velocity field that twists the top and bottom hemispheres in opposite directions, launching torsional waves into the interior. The sphere undergoes large torsional deformation as wave energy accumulates, reaching peak displacements of ~2.1 m before the restoring force reverses the motion.

Displacement magnitudeVelocity magnitude
Displacement magnitudeVelocity magnitude

Neo-Hookean solid (E = 10 kPa, ν = 0.33, ρ = 1000 kg/m³). 864 hexahedral elements (997 nodes). Implicit Newmark-β (β = 0.49, γ = 0.9) with CG + Jacobi preconditioner, Δt = 10 ms, 400 steps, 4.0 s simulated. Left: displacement magnitude [0, 0.8 m]. Right: velocity magnitude [0, 4.5 m/s]. Rainbow Uniform colormap; geometry warped by actual displacements.

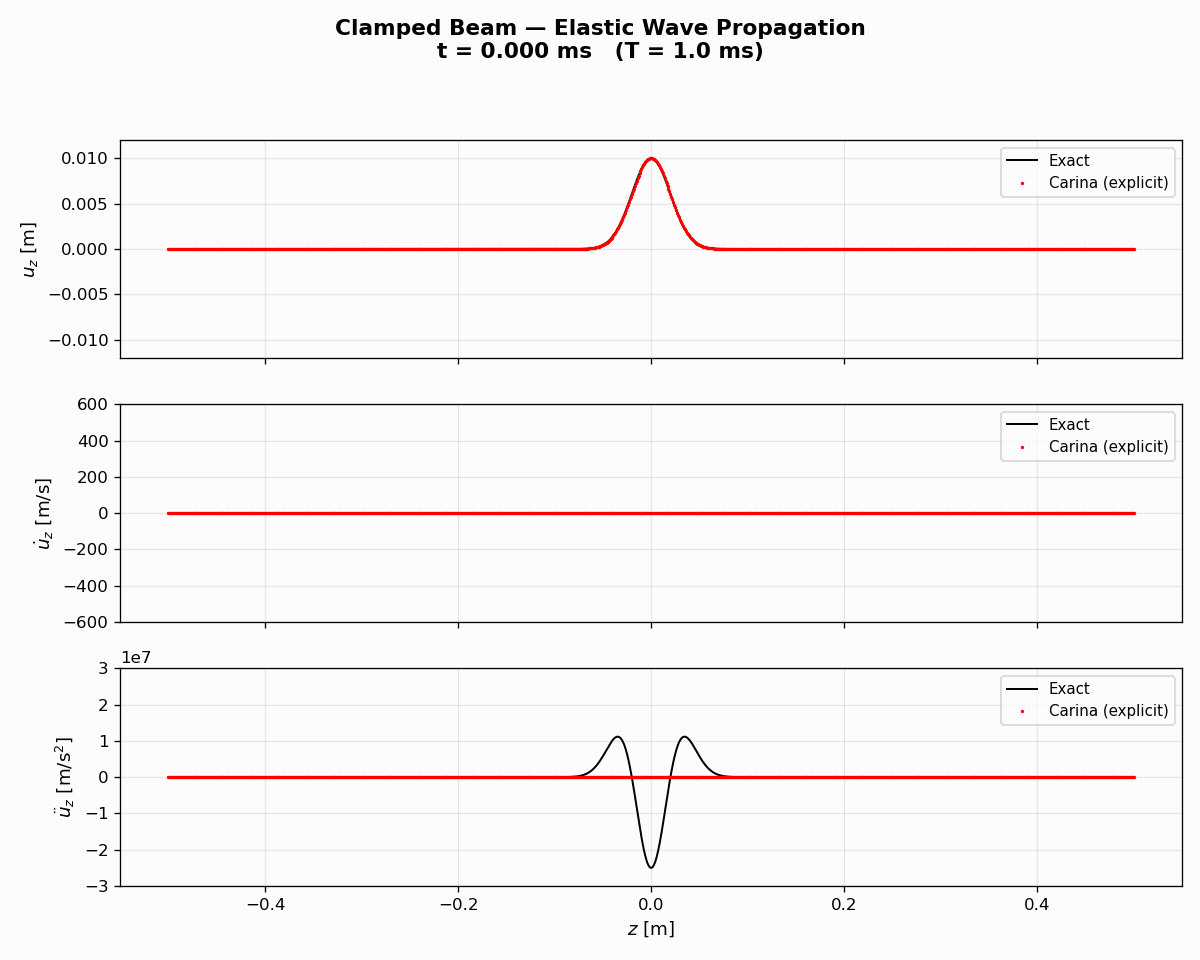

Elastic wave propagation — clamped beam

A 1 m linear elastic beam (1 mm × 1 mm cross section) clamped at both ends is given a Gaussian displacement pulse centered at the midpoint. The pulse splits into two counter-propagating waves that reflect off the clamped boundaries and return to form the mirror image of the initial condition at t = T = L/c = 1 ms. The computed solution (red) is overlaid on the closed-form analytical solution (black).

Clamped wave

Linear elastic (E = 1 GPa, ν = 0, ρ = 1000 kg/m³); wave speed c = 1000 m/s. 1000 hexahedral elements (4004 nodes). Explicit central difference, Δt = 100 ns, 10,000 steps, 1 ms simulated. Top: z-displacement. Middle: z-velocity. Bottom: z-acceleration. Analytical solution: Mota, Tezaur & Phlipot, IJNME 123:5036–5071, 2022, eq. 28.

Quick start

# self-activating CLI wrapper (recommended)
bin/carina input.yaml

# on a GPU
bin/carina input.yaml --device rocm

# multi-threaded on CPU
bin/carina input.yaml --threads 8

# or directly with Julia
julia --project=. src/Carina.jl input.yaml

See Installation to set up the environment and Running Carina for the full set of ways to launch a simulation.
